HDMI EXTENDERS

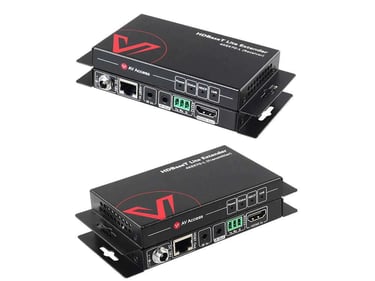

Economical 4K HDBaseT HDMI Extender, 70M HDMI Extender with 2-Way IR, CEC, PoE & RS232

4KEX70-L

● 4K@60Hz 4:2:0 8bit HDR: Transmits uncompressed 4K@60Hz HDMI signal up to 40m/130ft, and 1080P@60hz up to 70m/230ft over a single Cat 6a/7 cable. Also supports Dolby Atmos, DTS:X, Dolby True-HD, DTS-HD Master, LPCM 2.1/5.1/7.1 CH.
● Multi-Functional HDBaseT Extender: Supports bi-directional PoE, IR, CEC and RS232, as well as automatic EDID management. HDMI 1.4/HDCP 2.2 compliant with HDR (4K@60hz 4:2:0 chroma subsampling only).
● Plug & Play, Excellent Compatibility: Works perfectly with PCs, game consoles and most HDMI display devices. No software or driver is required; just plug and play.
● Slim Appearance & Wide Applications: Compact and space-saving, as small as a smartphone. Ideal for digital signage, home theater, boardroom, classroom, meeting room, and any other locations requiring long-distance HDMI signal extension.

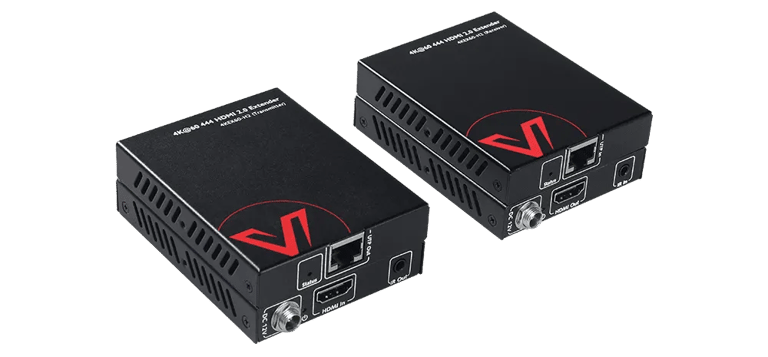

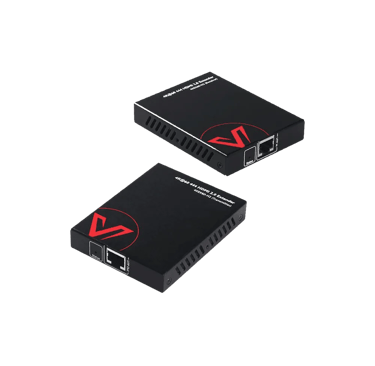

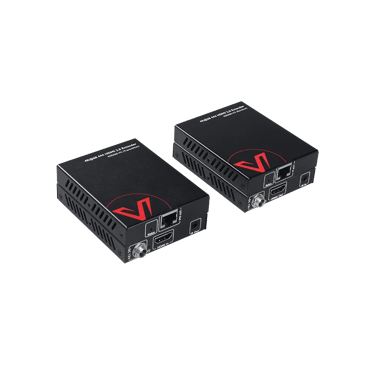

Economical 4K HDMI Extender up to 50m/164ft, HDMI Balun w/ 2-Way PoC & IR Control

4KEX60-H2

4K@60Hz (4:4:4) 18Gbps up to 35m/115ft：
1080P@60Hz up to 50m/164ft, Support Dolby vision up to 4K@30.

HDCP2.2 with Excellent Audio Pass through：
Backwards support HDCP1.4 and Dolby Atmos, DTS: X, DTS-HD, Master Audio, True-HD, PCM7.1.

Delicate Design and Easy Installation：
Small metal casing with mounting ear makes it fit in anywhere. Threaded power adapter for safety using.

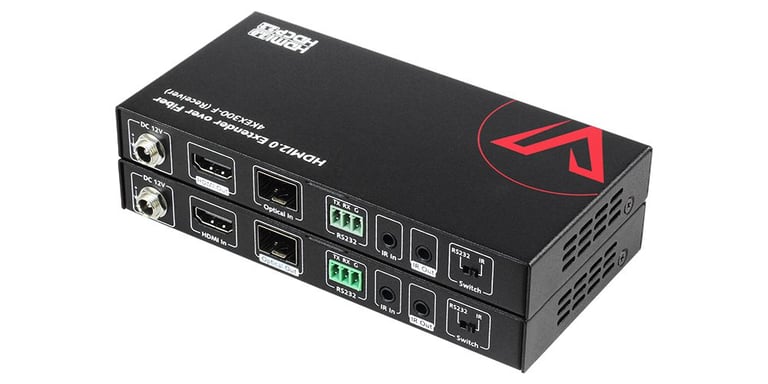

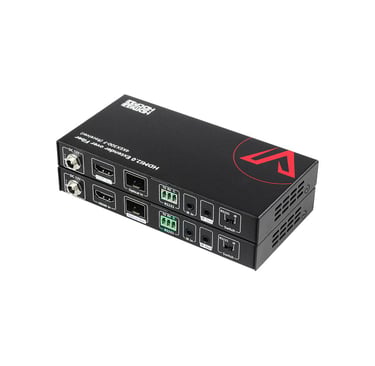

High-End 4K Fiber HDMI Extender, up to 1000ft (300m) over Fiber Optic Cable, HDMI 2.0 Transmitter & Receiver Kit, 2-Way IR & RS232

4KEX300-F

● Up to 300M Transmission Range: Extends 4K@60Hz ultra HD HDMI signal up to 1000ft (300m) over a duplex multi-mode optical fiber cable. Ideal for long-distance audio/video transmission across large buildings.
● Stable and Reliable Transmission: The fiber connection enables seamless and high-quality video transmission without compression or interruptions. It provides immunity to electromagnetic interference (EMI) and offers optical isolation, ensuring reliable signal integrity. Ideal for shopping malls, hospitals, sports arenas, etc.
● HDMI 2.0 & HDCP 2.2 Compliant: Supports video resolution up to 4K@60Hz 4:4:4 8bit, HDR 10, multi-channel PCM, Dolby and DTS HD audio up to 7.1. Offers you superior audio and video experience.
● Bi-Directional IR/RS232 Control: Provides you two control options via the DIP switch. Control both the source and display devices at either the transmitter or receiver side with ease.
● Plug & Play, Excellent Compatibility: Compact and portable, as small as a smartphone. Works perfectly with PCs, DVDs, DVRs, NVRs, and most HDMI display devices. No software or driver is required; just plug and play.

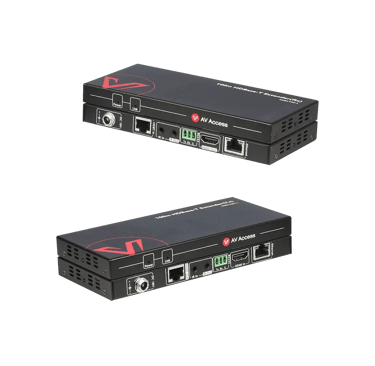

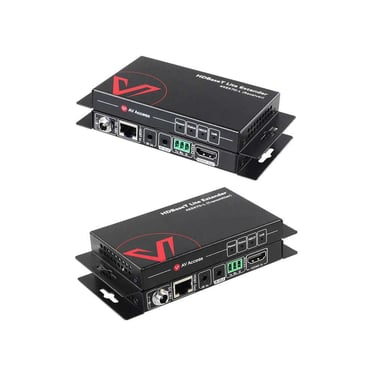

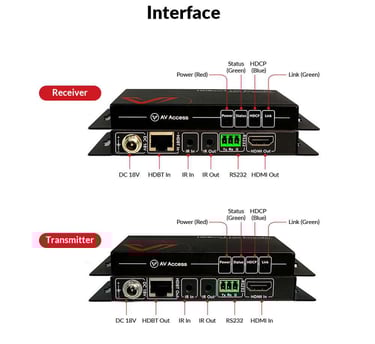

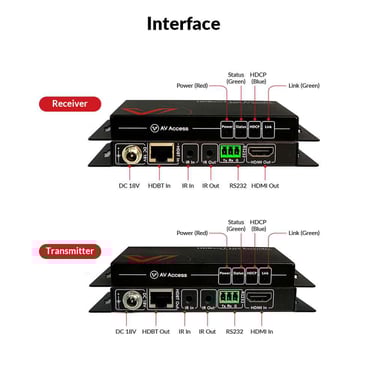

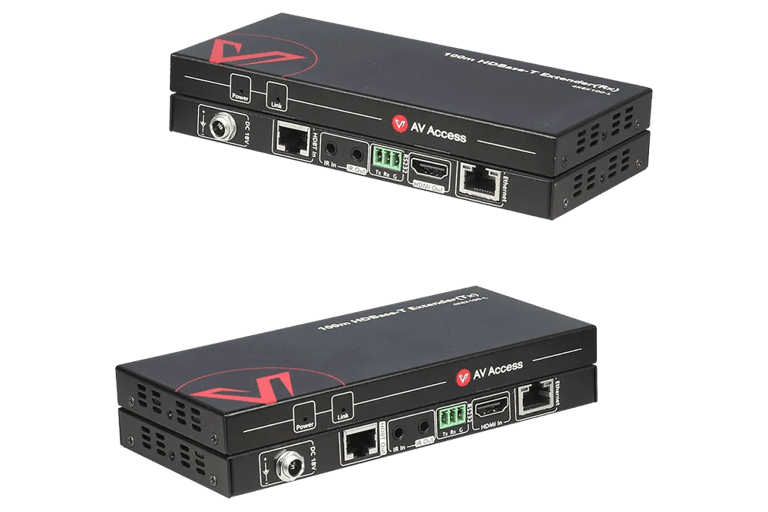

4K HDMI over HDBaseT Extender up to 100m/330ft with Bi-directional PoE/IR/RS232

4KEX100-L

4K@60Hz up to 100m/330ft:
HDMI audio supports stereo, LPCM 5.1/7.1, Dolby True HD, DTS-HD Master Audio.

Internet Relay Along with HDMI Signal:
100M ethernet signal extension with 4K HDMI signal over signal CATX cable.

Bi-directional PoE/IR/RS232:
Flexible use of multiple applications or work with third party`s control systems.

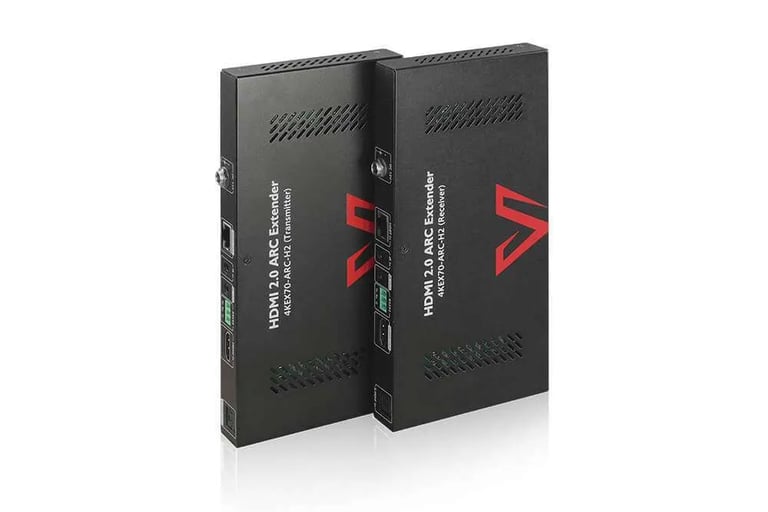

4K HDMI Extender with ARC, HDBaseT Extender w/ SPDIF Audio Extension, 2-Way IR, CEC, PoC & RS232, Ideal for Home Theater

4KEX70-ARC-H2

● Flexible ARC & SPDIF Modes: Built with a DIP switch on the receiver for effortless audio control. ARC & S/PDIF modes allow long-distance ARC or S/PDIF audio extension accordingly.
● HDMI 2.0 & HDCP 2.2 Compliant: Transmits 4K@60Hz HDMI signal up to 40m/130ft, or 1080P full HD up to 70m/230ft via a single Cat 6a/7 cable. Also supports HDR 10, Dolby TrueHD, Dolby Atmos, DTS:X, etc.
● Bi-Directional IR/CEC/RS232/PoC: Supports CEC pass-through, and control via IR or RS232 commands. Only one power supply is required to power both the transmitter and receiver.
● Plug & Play, Universal Compatibility: Works flawlessly with various AV receivers and display devices, like Denon, Marantz, Yamaha, Onkyo, etc. No software or driver is required; just plug and play.

KVM EXTENDERS

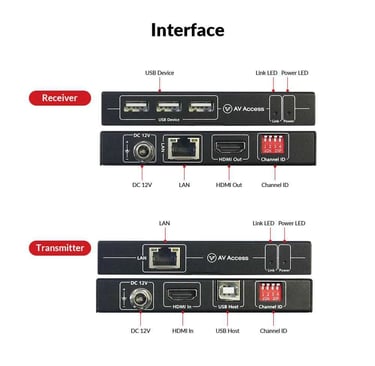

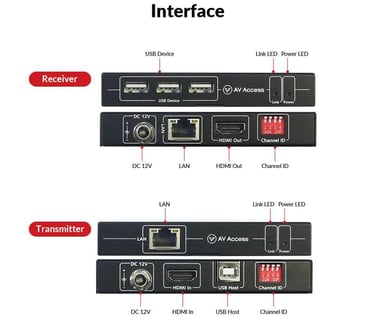

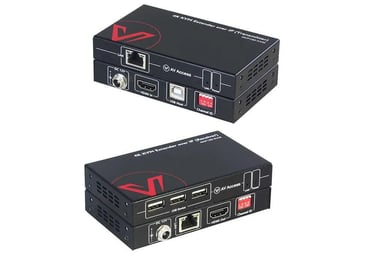

4K HDMI KVM Extender over IP, 120m/390ft USB Extender w/ Zero Latency & 1080P@120Hz, up to 16 Sets with DIP Setting

4KIP100-KVM

● 4K UHD & Zero Latency: Transmits 4K@30hz HDMI and USB 2.0 signals over a single Cat5e/6/7 cable up to 120m/390ft, with zero latency. No software or driver is required, just plug and play.
● Multi-User Control: Up to 16 sets of transmitter (TX) and receiver (RX) can work together via a standard Gigabit Ethernet switch without VLAN settings. Each TX and RX is built with a DIP switch for easy pairing.
● 3-in-1 USB Hub: Control your remote PC easily with a keyboard, mouse, touch-screen panel, or other USB 2.0 peripheral (high speed up to 480Mbps).
● High Refresh Rate: Supports 1080P@120Hz and 7.1-channel audio for a wonderful gaming experience. Works with all operating systems, like Windows, Mac, and Linux.
● High Reliability: Certificated by CE, FCC. Built-in superior surge/ESD protection. Comes with mounting ears for easy installation.

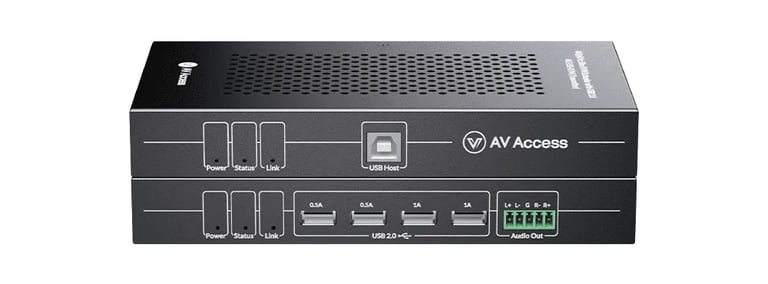

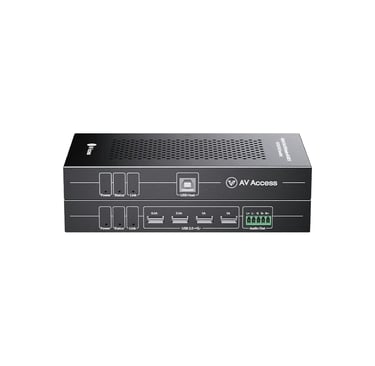

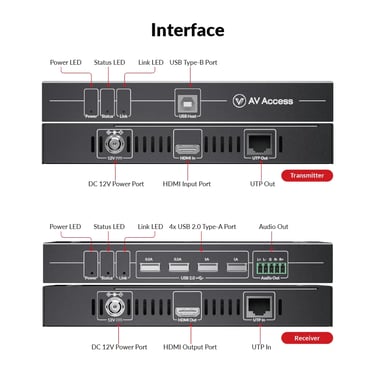

Zero-Latency 4K HDMI KVM Extender w/ 4-Port USB 2.0, 50m/164ft HDMI Balun over Cat 5e/6/6a/7, High Refresh Rate for 144Hz, 165Hz & 240Hz

4KEX50-KVM

● 4K UHD & Zero Latency: HDMI 2.0 & HDCP 2.2 compliant. Transmits 4K@60Hz 4:4:4 visually lossless HDMI signal up to 50m/164ft over a single Cat 5e/6/6a/7 cable, with zero loss or delay.
● Ultra-High Refresh Rate: Supports high refresh rates like 2560×1440@144Hz/120Hz and 1080P@240Hz/165Hz/144Hz/120Hz. Extend your high-speed racing game source easily and enjoy amazing game experience.
● Effortless Remote PC Control: Easily connect up to 4x USB 2.0 peripheral, like keyboard, mouse, speakerphone, webcam, hard disk, etc. Control a remote PC/server/NVR/DVR up to 50m/164ft with zero latency. Ideal for control center, university campus, government, etc.
● Innovative HDMI Audio Extraction: Built-in 5-pin phoenix audio de-embedding port. Works perfectly with eShare series presentation systems; extend HDMI/USB signals and extract HDMI audio to an audio system simultaneously in a large meeting room.
● Plug & Play, Universal Compatibility: Built-in one-way PoC function; only one power adapter is required at the receiver side to power both units. Works with different operating systems, like Windows 10/8/7/XP, Mac OS and Linux. No driver is required; just plug and play.

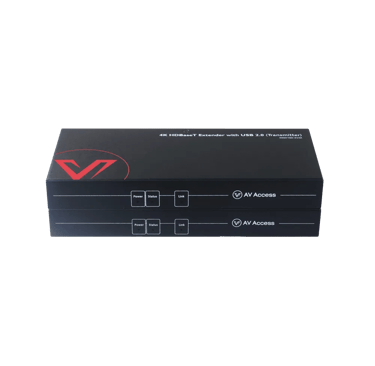

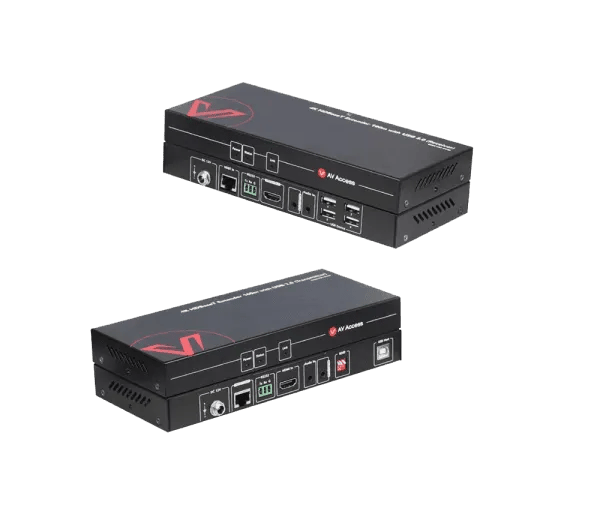

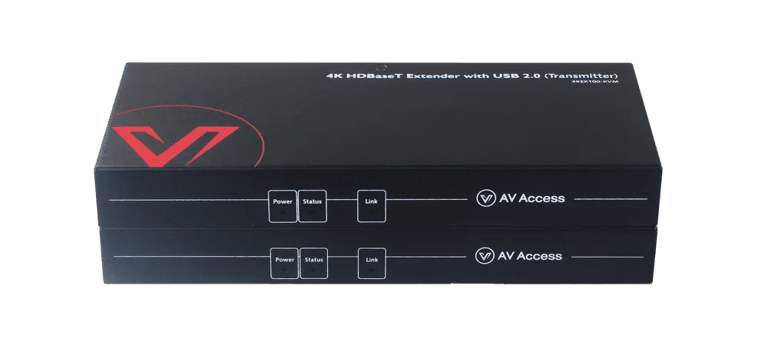

Zero-Latency 4K HDMI KVM Extender, 100m/330ft HDBaseT Extender w/ 4-Port USB 2.0 for PC Control, 1080P@120Hz, PoH & RS232

4KEX100-KVM

4K UHD & Zero Latency:
Transmits 4K@60hz HDMI signal up to 100m/330ft over single CAT6/7 cable, along with stereo audio and USB 2.0 extension. Also supports 1080P@120hz, ideal for PC game control.

USB 2.0 up to 480Mbps:
1x USB host port on the transmitter, 4x USB device port on the receiver; easily control remote PC/NVR with keyboard, mouse and other USB 2.0 peripherals.

Bi-Directional Stereo/RS232:
This HDBaseT 2.0 extender supports bi-directional 3.5mm stereo pass-through and RS232 pass-through; also supports one-way PoH. Built-in DIP switch for EDID management.

Highly Reliable:
Certificated by CE, FCC. Built-in surge/lightning protection. Superior ESD protection. Comes with mounting ear for easy installation

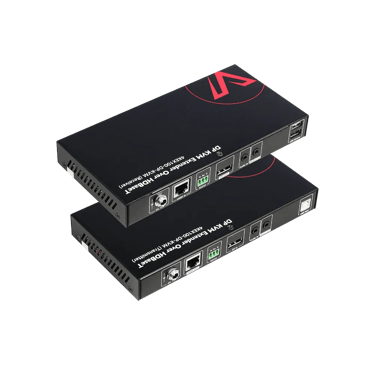

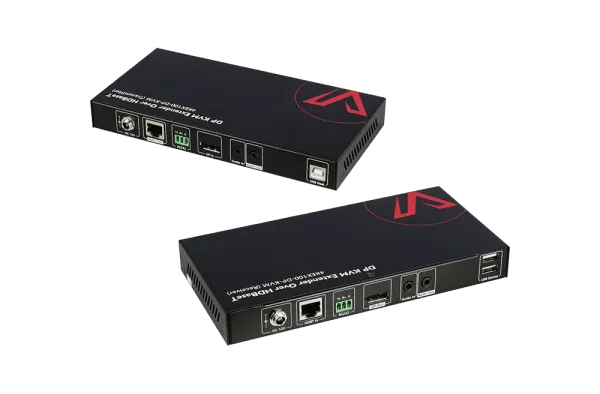

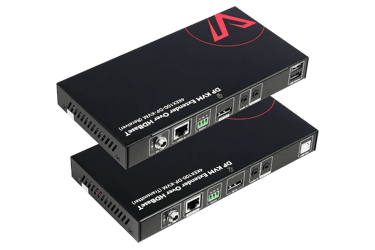

DisplayPort KVM Extender over CAT6, 4K Zero-Latency, 100m/330ft HDBaseT w/ Auto EDID

4KEX100-DP-KVM

4K UHD & Zero Latency:
Transmits 4K@30hz DisplayPort signal up to 100m/330ft over single CAT6/7 cable, along with stereo audio and USB 2.0 extension. Also supports 1080P@120hz, ideal for PC game control.

USB 2.0 up to 480Mbps:
1x USB host port on the transmitter, 2x USB device port on the receiver; easily control remote PC/NVR with keyboard, mouse or other USB 2.0 peripherals.

Bi-Directional Stereo/RS232:
Supports bi-directional 3.5mm stereo pass-through and RS232 pass-through; also supports one-way PoE and automatic EDID management.

Highly Reliable:
Certificated by CE, FCC. Built-in surge/lightning protection. Superior ESD protection. Comes with mounting ear for easy installation.

USB EXTENDERS

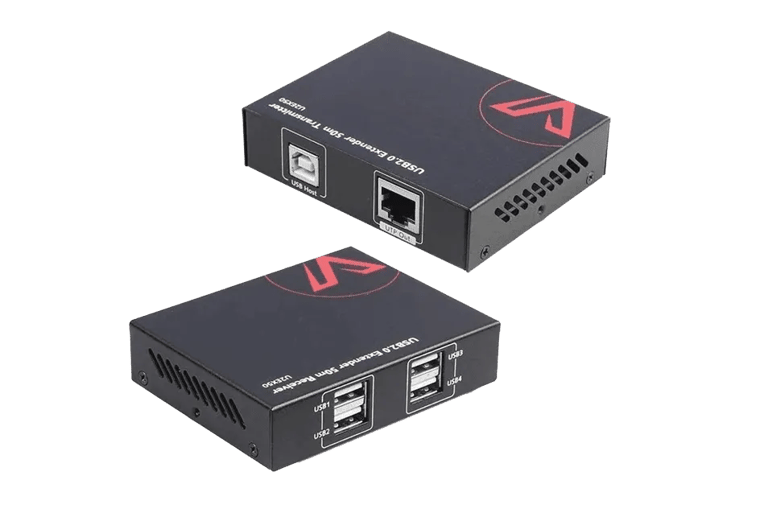

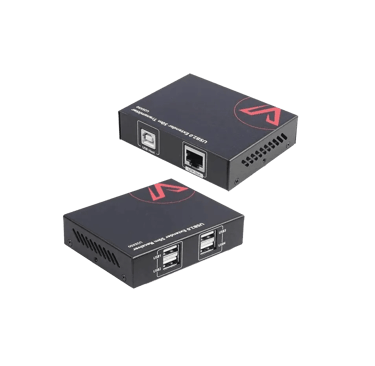

USB Extender 2.0 over CAT5e with Power Supply, 4x USB2.0 Port up to 60m/196ft

U2EX50

USB Extender over CAT:
This extender consists of a transmitter and a receiver, transmits USB signals over Ethernet and works with CAT5e or above cables.

USB Hub with Power Supply:
A power adapter (lockable DC 12V) is provided to offer the receiver a more stable power supply, and the transmitter will be powered by the USB Host port.

USB 2.0 up to 60m/196ft:
This product extends 4 USB ports up to 60m and supports all operating systems (Windows, MacOS, Android, Linux); Compatible with USB 1.1 peripheral devices. Certificated by FCC, CE.

Plug & Play with High Compatibility:
No driver required; Perfect for PCs, laptops like Macbooks, webcams, game consoles, video conferencing, and surveillance systems; Mounting Ear for easy installation.

Two Web Cameras Work Synchronously:
We recommend Webcam XP Pro software when connecting two webcams.

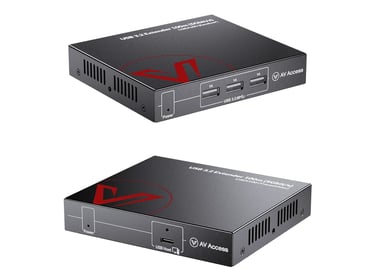

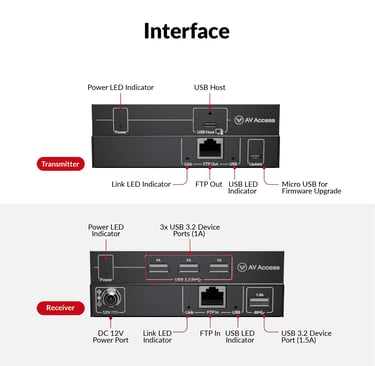

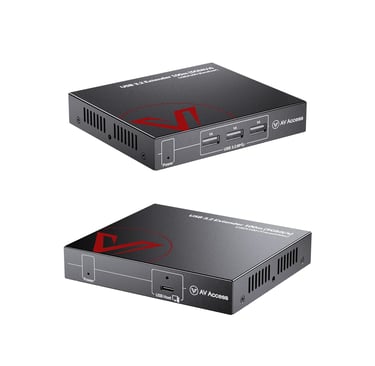

High-End USB 3.2 Extender with Zero Latency, up to 100m/330ft over Cat 6a/7, 4x USB 3.0 Ports, Ideal for Gaming & Streaming

U3EX100

● Ultra-Long Transmission Range & Zero Latency: Extends USB 3.2 signals up to 330ft (100m) over a Cat 6a or above cable, with zero latency. Perfect for office work, gaming, surveillance, live streaming/recording, astronomical observation, and more.
● Remote USB 3.2 Peripheral Control: Easily connect up to 4x USB 3.2 devices to your PC remotely, like a keyboard, mouse, game controller, security camera, audio mixer, digital telescope, etc. Enjoy 10 times faster transmission (5Gbps) than USB 2.0. Besides, designed with a pure hardware architecture, it supports all USB protocols.
● Ideal for High-Power USB Devices: One of the USB 3.2 ports provides a 1.5A high current output, perfect for connecting high-power USB devices like USB 3.0 cameras, external hard drives, and more.
● Plug & Play, Universal Compatibility: Works flawlessly with all PC systems, including Windows 10/8/7/XP, Mac OS, and Linux. No extra software or driver is required; just plug and play for a seamless experience.
● Ultra-Slim and Compact Design: Compact and portable, as small as a palm. Easy to install and space-saving. You can place the transmitter/receiver almost anywhere in your house for maximum convenience.
